Product Description:
Connector manufacturers, professional in producing connector for more than 15 years
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.

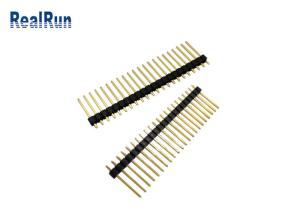

Brand New PBT UL94V-0 2.54mm Pin Header Gold Plated 10U Straight Connector
Product features:Envornment protection rubber and plastic, containing 30% glass fiber, fireproof and high temperature resistant, with strong oxidation resistance and stability.
Product function:Complete the board-to-board-to-cable connection like a bridge, so as to achieve the function of current connection signal transmission.
Scope of application: Widely used in electronics, electrical appliances, instruments in the general connection of the main components of the current or signal transmission. Usually with the female header socket supporting the use of a board to board connection. The utility model is matched with an electronic wiring harness terminal to form a board to cable connection.

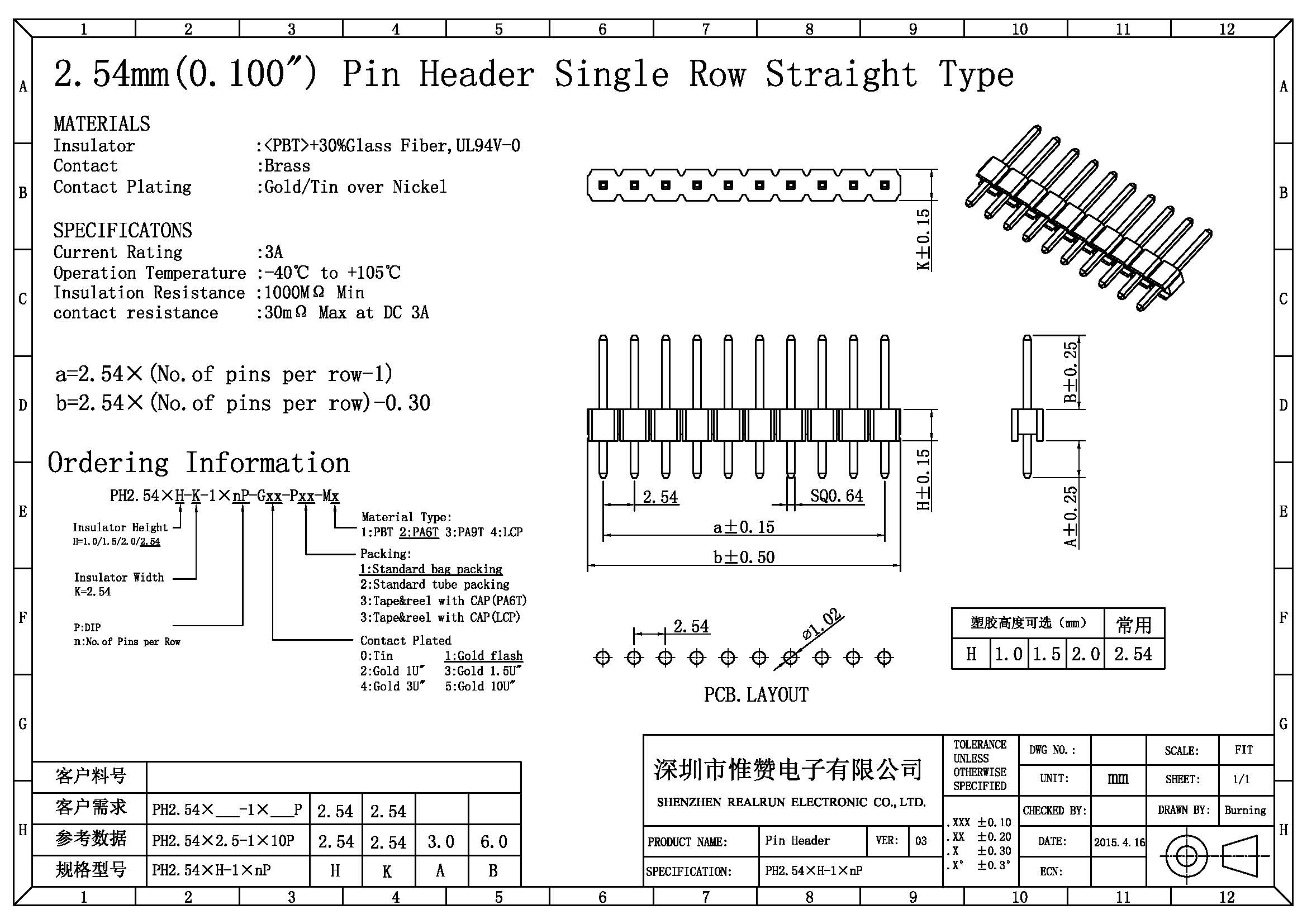

| Name | Pin Header Connector/PCB Connector |
| Pitch | 2.54mm |
| Plastic Height | 2.5mm |
| Type | DIP Type |
| Insulator Color | Black/Grey |
| Insulator Flammability | PBT UL 94V-0 |
| Current Rating | 3A |
| Contact Resistance(max) | 30m ohm Max |
| Insulation Resistance(min) | 1000M ohm Min |
| Contact materials | Brass |
| Contact Plating | Tin or gold over nickel |
| Insulator material | PBT+30%Glass Fiber |
| Operation Temperature | -40~105℃ |
| Packing | Bag Packing |
| OEM/ODM | Accepted |
| Mounting Type | Through Hole |
| Termination | Customization |
| Contact Shape | Square Pin |
| Pin Available | 1Pin~40Pin(Customized) |
Classification of pin header
According to pitch:0.8mm, 1.0mm, 1.27mm, 2.0mm, 2.54mm, 3.96mm, 5.08mm.
According to row number: single row ,dual row,three row,four row.
According to terminal shape: U type,Y type,O type.
According to number of plastic:single plastic, double plastic,three plastic.
According to structure: DIP Type,Right Angle Type,Horizontal Type SMD,Vertical SMT/SMD,U type.
Packaging＆shipping
Tray/Reel/Tube/Inner box + outer packing.
why choose RealRun for supplier?
A: 1. RealRun has more than 15 years experiences in the electronic connectors area.
2.The goods with good quality and service are sold to more than 70 countries.
3.More, all the goods have the relevant approvals and the service is excellent if you will consider us to be your supplier.
4.One of the biggest electronic connectors supplier in the China mainland.
FAQ
Q: Are you trading company or factory?
A: We are a factory with 15 years of connector manufacturing experience.
Q: What's your terms of payment?
A: 1.The payment terms can be flexiable depend on the quantity and products.
2.Usually, new customer we prefer the 100% T/T before shipping or 30%T/T advance before shipping.
Q: Can i get some samples?
A: Yes, some samples are for free.
Q: Has the product been check before delivery?
A: Yes, we have 100% full check before delivery.
Q: Can I visit your factory?
A: Welcome to visit, you will be more confident to us because of our professional control from design,production to shipment.
