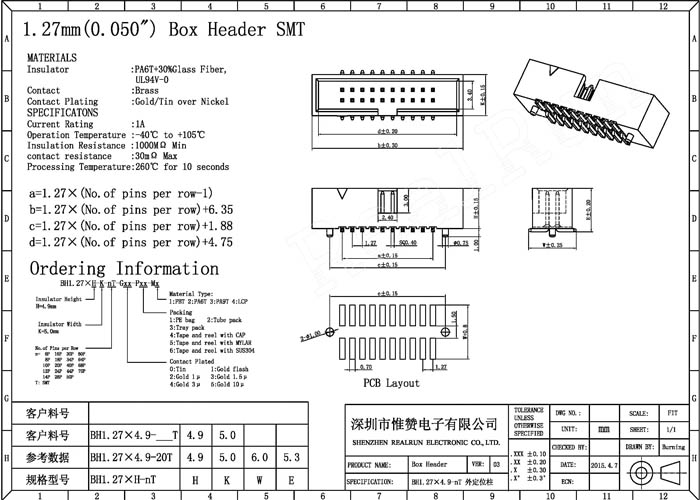

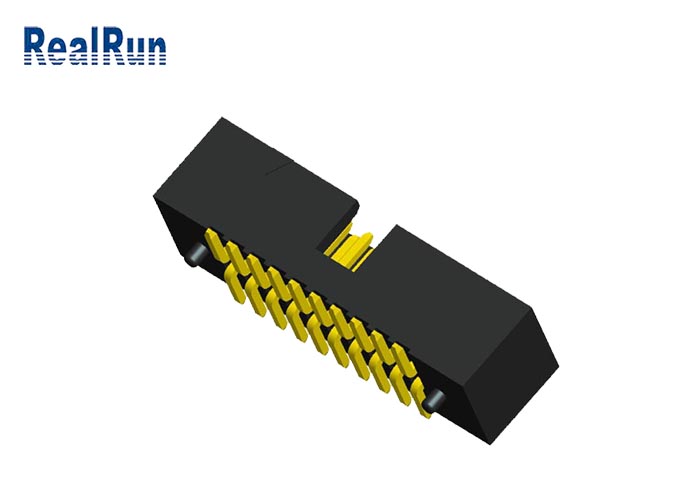

Wire/Board To Board Connector With Post 1.27mm SMT SMD Box Header
Product features: high temperature resistant to high voltage electrical conductivity.
Product material: PA9T/LCP/PBT, plating surface treatment: gold-plated or tin plating.
Scope of application: Mainly suitable for data communication and electronic equipment and welding on the PCB board, connected to the corresponding specification of IDC ribbon cable and the other circuit designers need to circuit. And if current usually transmission control signal.
| Name | Box Header Connector |
| Pitch | 1.27mm |
| Type | SMT type |
| Insulator Color | Black |
| Insulator | PA6T+30%G.F UL 94V-0 |
| Current Rating | 1A |
| Contact Resistance(max) | 30m ohm Max |
| Operation Temperature | -40℃ to +105℃ |
| Contact | Brass |
| Insulation Resistance(min) | 1000M ohm Min |
| Contact Plated | Tin or gold over nickel |
| Insulator material | PA6T PBT |
| Processing Temperature | 260℃ for 10 seconds |
| Packing | Tray Packing |
| OEM/ODM | Accepted |
Please feel free to contact us and we will send you the drawings you need.
Box Header Connector
Box header is usually composed of square plastic socket and several square pins arranged in order. The difference between the ejector header connector and the box header connector is that the snap on both sides of the box header is removed.
According to the requirements, there are four common specifications of the external dimensions of the connector: 1.0 pitch, 1.27 pitch, 2.0 pitch and 2.54 pitch; According to the different pitch, the diameter of the square pin is changed accordingly. The contact surface between the bottom and PCB board can be designed as SMT type or 90 degree bending insertion and DIP direct insertion of 180 degrees.
