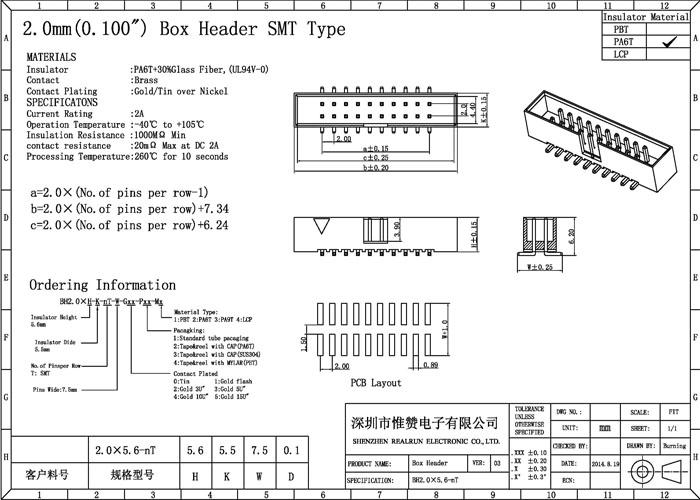

PA6T Black Plastic H=5.6mm Pitch 2.0 Dual Row SMT Type Box Header
Product features: high temperature resistant to high voltage electrical conductivity.
Product material: Good quality brass contact material,PA9T/LCP/PBT environmental protection and high temperature resistance plastic, plating surface treatment: gold-plated or tin plating.
Scope of application: Box header is widely used in displays, digital camera, MP3, MP4, PDA, computer, computer motherboard, a variety of mobile storage disk, card reader, security products, electricity meter, wireless telephone, mobile phone, interphone, program-controlled switches, VCD, DVD, LCM/LED display module, electronic toys, household appliances etc. As the most reliable connection plate to plate, wire to board provides.
Function: after the box connector is welded on the PCB board, it connects the corresponding specifications of IDC cable or female pin header, and then forms the circuit connection mode required by the designer with other circuits. It is usually used to transmit control signal and weak current.
| Name | Box Header Connector |
| Pitch | 2.0mm |
| Type | SMT type |
| Insulator Color | Black |
| Insulator | PA6T+30%G.F UL 94V-0 |
| Current Rating | 2A |
| Contact Resistance(max) | 20m ohm Max |
| Operation Temperature | -40℃ to +105℃ |
| Contact | Brass |
| Insulation Resistance(min) | 1000M ohm Min |
| Contact Plated | Tin or gold over nickel |
| Insulator material | PA6T PBT |
| Processing Temperature | 260℃ for 10 seconds |
| Packing | Tray Packing |
| OEM/ODM | Accepted |
Please feel free to contact us and we will send you the drawings you need.
Box Header Connector
Box header is usually composed of square plastic socket and several square pins arranged in order. The difference between the ejector header connector and the box header connector is that the snap on both sides of the box header is removed.
According to the requirements, there are four common specifications of the external dimensions of the connector: 1.0 pitch, 1.27 pitch, 2.0 pitch and 2.54 pitch; According to the different pitch, the diameter of the square pin is changed accordingly. The contact surface between the bottom and PCB board can be designed as SMT type or 90 degree bending insertion and DIP direct insertion of 180 degrees.
