Product Description:
Connector manufacturers, professional in producing connector for more than 15 years
We are specialized in electronic connectors, electronic wire harnesses and hardware development, if you couldn't find the exact items you need, please send us your drawings or pictures, we will provide the best solution for you.
2.0mm Double Row Straight DIP Box Header 30 Pin IDC Male Connector
1. Box header connector is usually composed of square plastic socket and several square pins arranged in order. The difference between the simple ox connector and ox horn connector is that the simple ox horn has removed the clasps on both sides.
2. Box header connector is welded on the PCB, it connects the IDC cable of corresponding specifications, and then forms the circuit connection mode that the designer needs to achieve with other circuits.
3. It is usually used to transmit control signals and weak current.
Product Application
Box header widely used in different industry such as automotive, medical equipment, computer and so on. as below image is application scenarios. image is limitation ,for more detail you can directly contact with our sales team.
| Name | Box Header Connector |
| Pitch | 2.0mm |
| Type | SMT type |
| Insulator Color | Black |
| Insulator | PBT+30%G.F UL 94V-0 |
| Current Rating | 2A |
| Contact Resistance(max) | 20m ohm Max |
| Operation Temperature | -40℃ to +105℃ |
| Contact | Brass |
| Insulation Resistance(min) | 1000M ohm Min |
| Contact Plated | Tin or gold over nickel |
| Insulator material | PA6T PBT |
| Packing | Tray Packing |
| OEM/ODM | Accepted |

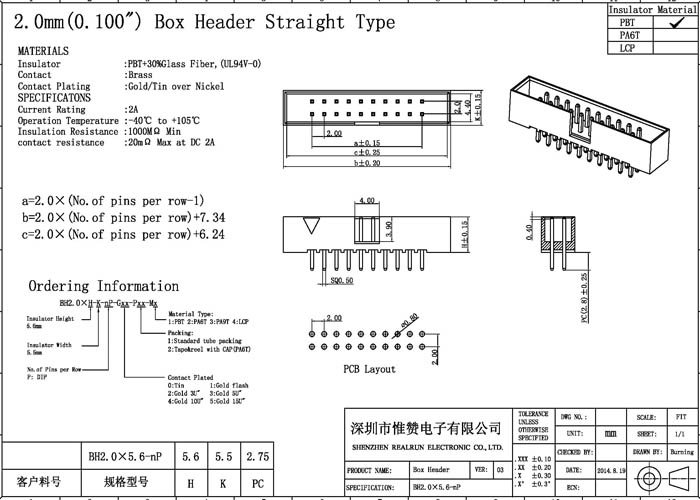

Please feel free to contact us and we will send you the drawings you need.
Description
1. Box header connector is usually composed of square plastic socket and several square pins arranged in order. The difference between the simple ox connector and ox horn connector is that the simple ox horn has removed the clasps on both sides.
2. Box header connector is welded on the PCB, it connects the IDC cable of corresponding specifications, and then forms the circuit connection mode that the designer needs to achieve with other circuits.
3. It is usually used to transmit control signals and weak current.
Why choose RealRun?
1. RealRun has more than 10 years experiences in the electronic connectors area.
2. The goods with good quality and service are sold to more than 70 countries.
3. More, all the goods have the relevant approvals and the service is excellent if you will consider us to be your supplier.
4. One of the biggest electronic connectors supplier in the China mainland.
Warranty & Guarantee:
All components we sell the quality with 30 days Return policy from the day of shipment.
Shenzhen RealRun Electronic Co., Ltd established in May of 2005, specializes in operating connectors. Main products: Pin header, Female header, Box header, Ejector header, IDC series, IC socket, single and double row round hole socket, FFC/FPC connector and SD socket, FFC cable, flat ribbon cable, RJ45 and RJ11, etc.
Sincerely welcome customers home and abroad to discuss cooperations! Sincerely thanks to our customers for more than 10 years of cooperation and guidance, we will be strict in management of the production of science and technology, good quality, as always, to serve you.
