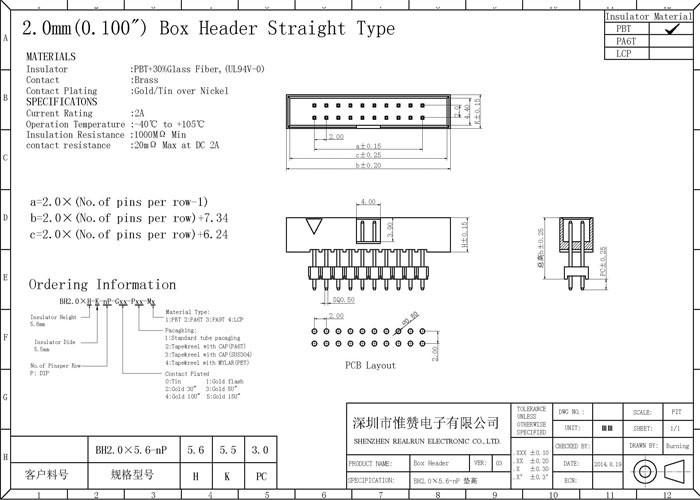

PCB Board 2.0 Mm Pitch Connector 40 Pin DIP Type Dual Plastic Straight
| Products Name | Box Header Connector/Wire to Board Connector |
| Pitch | 2.0mm |
| Color | Black/Blue |
| Insulator Material | PBT+30%GF UL94V-0 |
| Contact Material | Brass |
| Pin Available | 2Pins to 100Pins |
| Current Rating | 3.0AMP |
| Contact Resistance | 20mΩ Max |
| Withstand Voltage | 500V AC/DC |
| Insulation Resistance | 1000MΩ |
| Operation Temperature | -40℃ to +105℃ |
| Contact Plating | Au Over Ni |
| Mounting Type | Surface Mount/SMT |
| Termination | Solder |
| Orientation | Horizontal |
| Soldering Temperature | 260℃ for 10 Seconds |
Characteristics:
1. Female pogo pin connector, male pogo pin connector,
2. Free samples with high class precision, 0.01mm precision
3. High recycling, Large Current ,Low MOQ, Low-Resistance
4. Standard & Non-Standard Pogo pin connector
5. OEM / ODM , Can be custom Designed
6. One Row, two rows, three rows
7. Surface Mount Soldering, Double Head, Flat Head
Application:
Battery connector, Electrical DC Power connector, Electronic component connector, Electronic Products connector, LED lighting charger pogo pin connector, Medical Component pogo pin connector , Mobile Phone pogo pin connector, Mount USB pogo pin connector, Proble PCB pogo pin connector, Quick Wire connector pogo pin connector, Smartphone pogo pin connector, SMT / SMD pogo pin connector, Telecom / Mobile pogo pin connector, Wearable Devices pogo pin connector, Wearable digital device pogo pin connector, Wire Adaptors pogo pin connectors, Andor TV Box pogo pin connector, Antenna Clips Battery pogo pin connector.
Shipping:
1. We can shipping all over the world by DHL, UPS, FEdex, TNT and EMS. The packaging is very safe and strong. Please nitfy me you have any special needs
2. It will take around 3-7 days to reach your hands.
Product Type & condition:
Because of the fluctuant sales situation. the stock parts are always changing and the stock list cannot be promptly updated. So please consult the stock situation when you inquire.
Warranty & Guarantee:
All components we sell the quality with 30 days Return policy from the day of shipment.
100% Guarantee Qualtiy
• Manufactured Under Strict Controls.
• 100% Tested (Not Just Batch Tested)
• Quality Guarantee
Please contact us for details.
